Digital TV Receiver
DTMB 2003
DTMB 2003 is a digital terrestrial TV receiver. The fully compliant with GB20600-2006 standard. You can easily watch any digital TV programs on your PC with the revolutionary DTMB 2003. DTMB 2003 provides you digital entertainment anywhere without annoying power adapter and wires. Bundled with powerful DTV player able to do Real-Time / Scheduling digital video recording, you will miss no important programs ever.
DESCRIPTION
H/W Spec
(01) Fully compliant with GB20600-2006 standard
(02) Receive Range : CH13~CH56; 474MHz~858MHz
(03) Channel Bandwidth: 8MHz
(04) Modulation mode: 4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM
(05) FEC: 0.4, 0.6, 0.8
(06) Carrier Mode: C=3780, C=1/P=1, C=1/P=2
(07) Guard Interval: 945, 595, 420
(08) Time Interleave: 240,720
(09) Power Consumption: 1.5W (5V x 300mA)
(10) Antenna Input Impedence: 50 Ohm
(11) RF Input: Mini Pal connector
(12) USB 2.0 Interface Compatible
(13) USB Connector: A Type

 DTMB 2003 Digital TV Receiver DTMB 2003 Digital TV Receiver

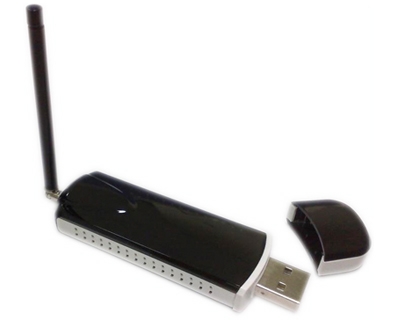

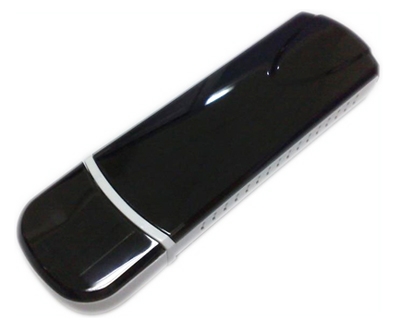

Product Picture

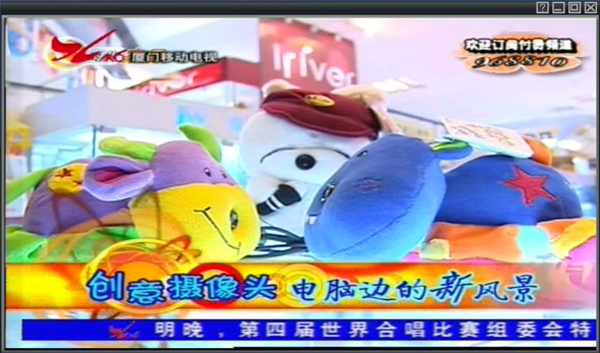

 DTMB 2003 Digital TV Receiver Application

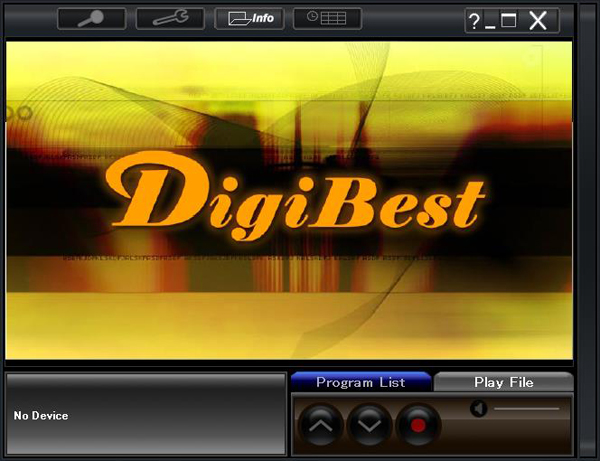

DigiBest Digital TV AP Playing


S/W Spec
(01) Video Format: Mpeg2 MP@HL,H.264/ AVC
(02) Video Frame Rate: 30 fps by broadcaster
(03) Video Bite Rate: 19Mbps, Max
(04) Audio Format: Mpeg1/2,mp3,AC3/Dolby,DTS,AAC
(05) Software Compatible: Windows XP / Vista / 7 / 8
(06) Features :
  01. Microsoft Windows BDA architecture to DTMB system
  02. Fully Resizable TV (Up to Full Screen)
  03. EPG Support (L-EIT Standard)
  04. Still Image Capture
  05. Play Recording File
  06. Plug & Play installation
  07. Program Guide
  08. Favorite Set
  09. Real Time Recording
  10. Schedule Recording
  11. USB2.0 High Speed Interface

 DTMB 2003 Digital TV Receiver Application
