Features:
|
| ※ |
ISDB-T Full-Seg support |
| ※ |
Extremely high sensitivity |
| ※ |
Exceptionally low power consumption < 270mW |
| ※ |
Superior mobility algorithms |
| ※ |
USB interface |
| ※ |
Includes device drivers for all popular processors and operating systems |
| |
|
  |

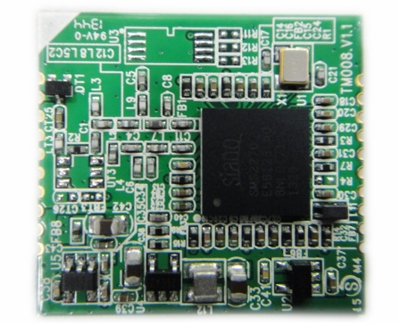

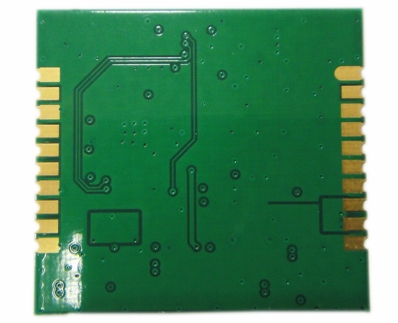

| Product Picture |
 |
| AP Playing |
| |
|
Product Spec
|
| (01) |
Dimension: 26 mm x 28 mm x 1.0mm |
| (02) |
Height: Top 2mm(Max) |
| (03) |
USB Interface Compatible |
| (04) |
Power voltage: 5.0V +/- 5% |
| (05) |
Power consumption On Working Mode: 5.0V 270mA (MAX) |
| (06) |
ISDB-T Broadcasting Standard: 1 & Full Seg Channel Compliant |
| (07) |
Support ISDB-T VHF/UHF programs |
| (08) |
Modulation mode: DQPSK, QPSK, 16QAM, 64QAM |
| (09) |
Channel Bandwidth: 430KHz 1 Seg & 6MHz For 13Seg |
| (10) |
Antenna Input Impedence: 50 Ohm |
| (11) |
Sensitivity: -78dBm (64QAM HD) |
| (12) |
Temperature: -5℃ to +65℃ |
