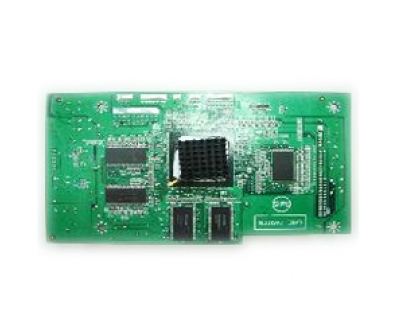

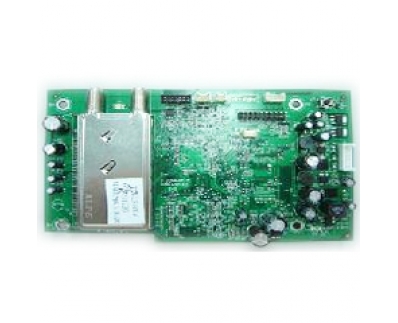

Full Seg Module
ISDB-T TM1001
(1) Video Format: ISDB-T, Full Segment MPEG 1/2 (HD/SD),H.264(HD/SD) (ISO/IEC 14496-10)
(2) Video Frame Rate: 30 fps by broadcaster
(3) Video Bite Rate: 32 Mbps, Max
(4) Audio Format: MPEG 1/2
MPEG 2 HE-AAC (ISO/IEC 13818-7)
MPEG 4 HE-AAC (ISO/IEC 14496-3)
AC3/Dobly
DESCRIPTION
| H/W Spec |
| (01) |
ISDB-T Broadcasting Standard: Full seg Channel Compliant |
| (02) |
Support ISDB-T Full Seg programs: |
VHF CH7 (174MHz) ~ CH13 (216MHz) |
| |
|
UHF CH14 (470MHz) ~ CH69 (803MHz) |
| (03) |
Modulation mode: DQPSK, QPSK, 16QAM, 64QAM |
| (04) |
Guard Interval : 1/32, 1/16, 1/8, 1/4 |
| (05) |
Mode : Mode1, Mode2, Mode3 |
| (06) |
FEC Modes : 1/2, 2/3, 3/4, 5/6, 7/8 |
| (07) |
RF Input: F connector |
| (08) |
TV Signal Output: HDMI |
| (09) |
Power Consumption: 12V |
| (10) |
Channel Bandwidth: 5.6MHz |
| (11) |
Antenna Input Impedance: 75 Ohm |
| (12) |
Sensitivity: -78dBm (Typical) |
| (13) |
Maximum Input Level: +10dBm |
| |
|
| |
|
| S/W Spec |
| (01) |
Video Format: |
ISD月B-T, Full Segment MPEG 1/2 (HD/SD), |
| |
|
H.264(HD/SD) (ISO/IEC 1449月6-10) |
| (02) |
Video Frame Rate: 30 fps by broadcaster |
| (03) |
Video Bite Rate: 32 Mbps, Max |
| (04) |
Audio Format: |
MPEG 1/2月 |
| |
|
MPEG 2 HE-AAC (ISO/IEC 13818-7) |
| |
|
MPEG 4 HE-AAC (ISO/IEC 14496-3) |
| |
|
AC3/Dobly |
|
