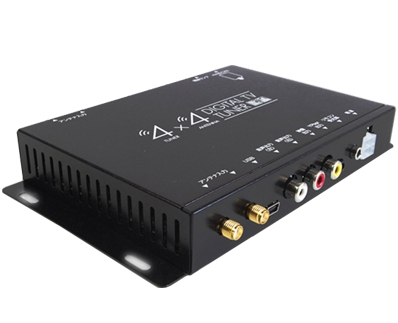

Digital Terrestrial Car Box
ODM
DigiBest welcome ODM digital Car TV, it can allows you to access free-to-air terrestrial digital TV. You can enjoy high quality TV programs on your Car monitor. Being a digital Car TV, it is compatible with all CVBS / HDMI or Ypbpr monitors. It can offers vigorous and clear video quality and support high resolution of up to 1920×1080.
DESCRIPTION
| Features |
| * |
Hi HD Resolution Output |
 |
| * |
4 x 4 Antenna Receive |
| * |
CVBS and HDMI Video Output |
| * |
Closed Caption |
| * |
EPG Support |
| * |
MTS Support |
| * |
Main/Second Sound to choose |
| * |
Hi Speed Mobile Receive |
| |
|
|
| |
|
|
| Product specifications |
| Hardware |
TV |
DVB-T / T2 Broadcasting Standard |
| |
|
Support DVB-T / T2 VHF / UHF programs |
| |
|
Channel Bandwidth: 1.7 / 5 / 6 / 7 / 8 / 10 MHz |
| |
|
Modulation mode: QPSK, 16QAM, 64QAM, 256QAM |
| |
|
Guard Interval : 1/32, 1/16, 1/8, 1/4,1/128, 19/128, 19/256 |
| |
|
FFT : 1, 2, 4, 8, 16, 32 |
| |
|
FEC Modes : 1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 7/8 |
| |
Antenna |
RF In/Out Connector: SMA Type |
| |
|
Input impedance: 75Ω |
| |
Power |
Power Input: DC 12V |
| |
|
Power consumption: <8.4W |
| |
|
Standby Power consumption: <0.15W |
| |
Front Panel |
LED indicator |
| |
|
RF Input: SMA Type x 2 |
| |
Rear Panel |
RF Input: SMA Type x 2 |
| |
|
AV Output: HDMI x 1 or Ypbpr x1 , Composite Video |
| |
|
(CVBS) x 1 |
| |
|
External IR jack : φ3.5mm x1 |
| |
|
Mini USB x1(For software upgrade) |
| |
|
Power socket : 4pin DC in x1 |
| Software |
Video decode |
MPEG-1,MPEG-2 MP@HL, MPEG4 ASP@L5 HD, |
| |
|
H.264 MP@L4. And HP@L4.1 |
| |
Video Frame Rate |
30 fps |
| |
Audio decoding |
MPEG-4 AAC@L2 (AAC Level 2), MPEG-4 HE-AAC |
| |
|
v1@L2 (HE-AAC, Version 1, Level 2) |
| |
Video Bite Rate |
60 Mbps, Max |
| |
Video resolution |
480i/480p/720i/720p/1080i |
| |
Aspect Mode |
16:9 / 4:3 |
| OPERATING |
Temperature |
0º–100ºC |
| CONDITI0N |
Humidity |
20%~80% |
| DIMENSION |
|
170mm(W) X 105mm(D) X 25.5mm(H) |
| WEIGHT |
|
320g |
| |
|
|
|
