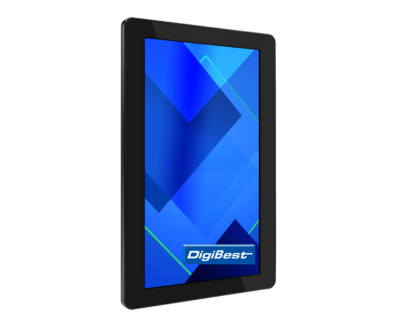

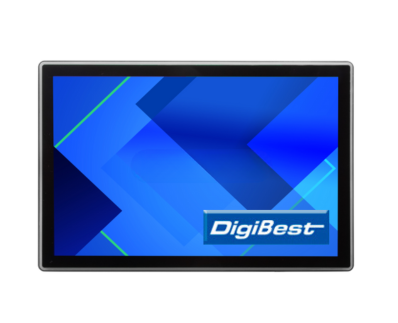

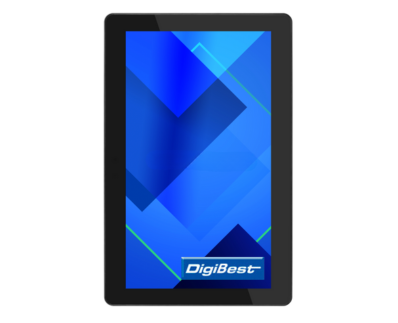

11.6" Android Panel PC
TM038
Explore our latest 11.6-inch Android Panel PC. Operating on Android 12 and powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device provides seamless operation and advanced graphics capabilities. Featuring 4GB RAM and 16GB storage, it enables efficient multitasking, while IEEE 802.3at PoE+ support streamlines power and connectivity and eliminates complex wiring plans. This Android Panel PC offers diverse I/O ports for peripheral devices, making it ideal for many solutions from retail and corporate, to healthcare and industrial settings. It supports 10-point PCAP touch functionality and has undergone a non-glare treatment for enhanced visibility. In addition, it also supports 600cd/m2.
DESCRIPTION
Panel
| Panel type |
TFT LCD IPS |
| Resolution |
1920 x 1080 |
| Backlight |
Edge-LED backlight |
| Brightness |
600 cd/m2 |
| Viewing angle |
H160 / V160 |
| Contrast ratio |
1000 to 1 |
| Touch Type |
10 TP Pcap 10ms |
| Treatment |
Non-glare |
| Convenience |
Landscape,Portrait,Table Mode |
| Operation hours |
24h / 7d |
System
| GPU |
Mali-G52 |
| CPU |
RK3568 (Quad-core ARM Cortex-A55) |
| Video input |
N.A. |
| Video out |
Yes, mini-HDMI out |
| External storage |
SD-Card Slot (door) |
| Internal storage |
16 GB eMMC Flash |
| LED Light Bar |
via PoGo
|
| Network LAN RJ45 |
10/100/1000 Mbps LAN |
| WiFi |
802.11 a/b/g/n |
| Bluetooth |
5 |
| Power over Ethernet (PoE) |
IEEE 802.3at (PoE+) |
| Integrated NFC |
via PoGo & USB |
| Camera |
via PoGo & USB |
Video/Audio
| Video support |
3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS |
| Audio support |
AAC,ASF,MP2,OGG,WAV,WMA |
| Photo support |
JPG,JPEG,PNG,BMP,GIF |
| Microphone |
Yes |
| Speakers |
2 x 2 W |
Physical
| Housing |
ABS+PC (Macrolon) |
| Color |
Black |
| Weight |
900 g |
| Dimensions |
295,8 x 189,6 x 26 mm |
| Mounting / VESA |
VESA 75 |
| Power Supply |
12 V / 2 A |
| Power Usage |
10 ~ 23 Watt |
| Pogo Pins |
3x (bottom/left/right) |
Other
| OSD Language |
Multi OSD language |
| Clock Battery (for RTC) |
CR1220 Lithium metal, non rechargeable |
| Storage Temp |
-10~55 degrees C |
| Working Temp |
0 ~ 40 degrees C |
| Storage/Working Humidity |
10 ~ 90 % non-condensing |
| MTBF |
45,000 hours demonstrated |
| Standard Warranty |
3 years |
| Certifications |
UKCA, CE, FCC, RoHS, REACH |
| SKU |
N.A. |
|
